Video/Audio Input |
|
IP video input: |
| |
16-ch |
|
Two-way audio input: |
| |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
|
Network |
|
Incoming bandwidth: |
| |
160Mbps |
|
Outgoing bandwidth: |
| |
256Mpbs |
|
Remote connection: |
| |
128 |
|
Video/Audio Output |
|
HDMI Output: |
| |
1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
|
Recording Resolution: |
| |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Audio Output: |
| |
1-ch, RCA (Linear, 1kΩ) |
|
Synchronous Playback: |
| |
16-ch |
|
VGA Output: |
| |
1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
|
Decoding |
|
Live view / Playback: |
| |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Capability: |
| |
4-ch@8MP,16-ch@1080P |
|
Hard Disk |
|
SATA: |
| |
4 SATA interfaces for 4HDDs |
|
Capacity: |
| |
Up to 6TB capacity for each HDD |
|
External Interface |
|
Network Interface: |
| |
2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
|
Serial Interface: |
| |
RS-232; RS-485; |
|
USB Interface: |
| |
Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0 |
|
Alarm In: |
| |
16-ch |
|
Alarm Out: |
| |
4-ch |
|
General |
|
Power Supply: |
| |
100 to 240 VAC |
|
Consumption(without hard disk and POE): |
| |
≤20 W |
|
Working Temperature: |
| |
-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
|
Working Humidity: |
| |
10 % ~ 90 % |
|
Chassis: |
| |
19-inch rack-mounted 1.5U chassis |
|
Dimensions: |
| |
445 × 390 × 70 mm (17.5″× 15.3″ × 2.8″) |
|
Weight(without HDD): |
| |
≤ 5 Kg (11 lb) |

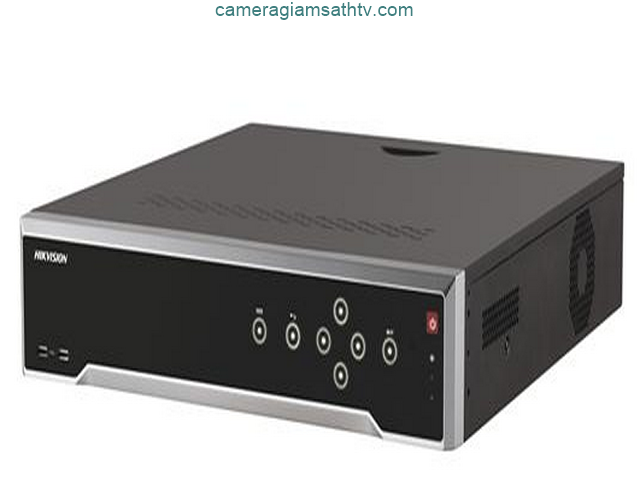

.png "Đầu ghi hình IP camera 16 kênh DS-7716NI-E4")
