Video/Audio Input |
|
IP video input: |
| |
16-ch |
|
Two-way audio input: |
| |
1-ch, BNC(2.0 Vp-p, 1kΩ) |
|
Network |
|
Incoming bandwidth: |
| |
100Mbps |
|
Outgoing bandwidth: |
| |
240Mbps |
|
Remote connection: |
| |
128 |
|
Video/Audio Output |
|
CVBS Output: |
| |
1-ch, BNC(1.0Vp-p, 75Ω)
Resolution: 704×576(PAL); 704×480(NTSC) |
|
HDMI Output: |
| |
1-ch, resolution: 1920*1080P/60Hz, 1920*1080P/50Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
|
Recording Resolution: |
| |
6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Audio Output: |
| |
1-ch, BNC (Linear, 600Ω) |
|
Synchronous Playback: |
| |
16-ch |
|
VGA Output: |
| |
1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
|
Decoding |
|
Live view / Playback: |
| |
6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Capability: |
| |
10-ch@720P, 5-ch@1080P |
|
Hard Disk |
|
SATA: |
| |
2 SATA interfaces |
|
Capacity: |
| |
Up to 4TB capacity for each HDD |
|
External Interface |
|
Network Interface: |
| |
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
|
Serial Interface: |
| |
RS-232; RS-485; |
|
USB Interface: |
| |
2, USB2.0 |
|
Alarm In: |
| |
4-ch |
|
Alarm Out: |
| |
2-ch |
|
General |
|
Power Supply: |
| |
12 VDC |
|
Consumption(without hard disk and POE): |
| |
≤ 13 W |
|
Working Temperature: |
| |
-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
|
Working Humidity: |
| |
10 % ~ 90 % |
|
Chassis: |
| |
19-inch rack-mounted 1U chassis |
|
Dimensions: |
| |
445 × 261 ×44.5 mm (17.5″ × 10.3″ × 1.8″) |
|
Weight(without HDD): |
| |
≤ 4 Kg (8.8 lb) |
|

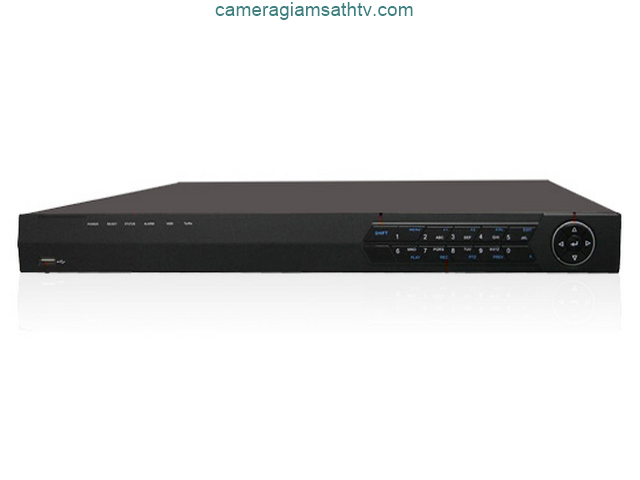

.png "Đầu ghi hình Hybrid camera IP 8/16/32 kênh")
