Video/Audio Input |
|
IP video input: |
| |
16-ch |
|
Two-way audio input: |
| |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
|
Network |
|
Incoming bandwidth: |
| |
160Mbps |
|
Outgoing bandwidth: |
| |
80Mbps |
|
Remote connection: |
| |
128 |
|
Video/Audio Output |
|
HDMI/VGA output: |
| |
1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
1024 × 768 /60Hz |
|
Recording Resolution: |
| |
6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Frame Rate: |
| |
Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N) |
|
Audio Output: |
| |
1-ch, RCA (Linear, 1kΩ) |
|
Synchronous Playback: |
| |
16-ch |
|
Decoding |
|
Live view / Playback: |
| |
6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Capability: |
| |
16-ch@4CIF, 12-ch@720P,
6-ch@1080P |
|
Hard Disk |
|
SATA: |
| |
2 SATA interfaces for 2 HDDs |
|
Capacity: |
| |
Up to 4TB for each disk |
|
External Interface |
|
Network Interface: |
| |
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
|
USB Interface: |
| |
1 × USB 2.0 and 1 × USB 3.0 |
|
Alarm In: |
| |
4-ch |
|
Alarm Out: |
| |
1-ch |
|
General |
|
Power Supply: |
| |
12V DC |
|
Consumption(without hard disk and POE): |
| |
≤ 10W |
|
Working Temperature: |
| |
-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
|
Working Humidity: |
| |
10 % ~ 90 % |
|
Chassis: |
| |
380 chassis |
|
Dimensions: |
| |
380 × 290 × 48mm (15.0 ×11.4 × 1.9
inch) |
|
Weight(without HDD): |
| |
≤ 1 kg |

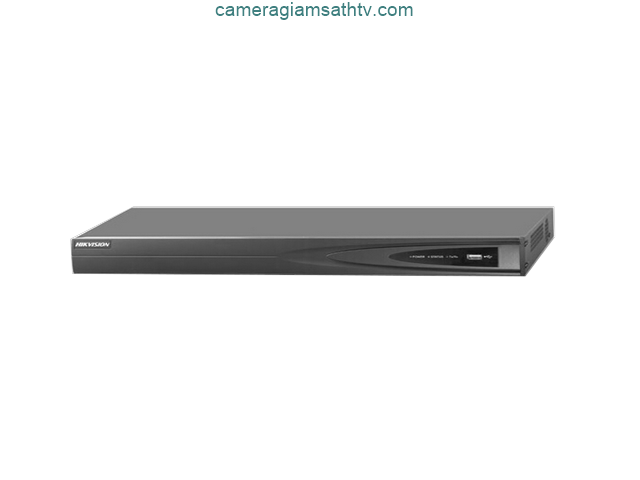

.png "Đầu ghi hình camera IP 4 /8/16 kênh DS-7600NI-E2")
